Button Brush Tables – Bed Brushes

Button brushes and shaped brushes provide effective solutions for Computer Numerical Control (CNC) machine tools. They offer a friction-less solution for sheet metal processing while moving along the brush tables. Their application provides a perfect solution for CNC table brushes and turret punch presses.

In summary, button brushes are the perfect solution for mechanical equipment, electrical equipment, punch presses, and table feeds.

When using the button brush, materials get transported without the risk of damage through friction or material on material interaction. The material transportation is in a stable and controlled manner. The brushes can both serve the purpose as a surface or directional guides. The button brush provides a significant noise and shock reduction, avoiding any risk of damage to the material.

Brush tables with button brushes cut noise levels, stabilize conveyor traffic, and closeout paint booth tracks. When your parts need to move along a machine bed for further fabricating, you don’t want them scratched or marred by metal-to-metal contact. Nor do your employees want to listen to metal screeching against metal. Use Flex-guard button brushes on your turret head press to replace metal roller balls, prevent scratches and marring, and cush your sheet metal. Brush tables with button brushes can be created and installed on your machines to match your fabricating process’s exact specifications.

Contact Flex-guard for more information on brush tables with button brushes: salesinfo@flex-guard.com

Button Brush Tables - Bed Brushes - PDFButton Brush Tables – Bed Brushes – PDF

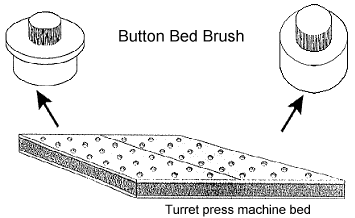

bb8

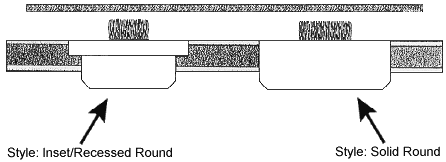

bb7



QUIET ENVIRONMENT • NON-ABRASIVE SURFACE • SMOOTH OPERATION






Button Brushes Design Specification

Flex-Guard has a wide variety of different size Button Brushes. Let us help you design the right Button Brush for your application. For more information on Flex-guard Button Brushes Design Specification, please complete the form below and press Send.
All measurements are in inches.

Button-Brushes-Design-Specification




    If you have any questions about Button Brushes Design Specification, please fill out the form below or click to call one of our engineers at 800.634.4471 to solve all your brush issues.



    A. Outer Diameter - Choose one
    2.2371.8151.4371.8052.0001.185

    A. Outer Diameter - Your Dimensions


    B. Inner Diameter - Choose One
    2.1651.4301.2051.500

    B. Inner Diameter - Your Dimensions


    C. Lip Height - Choose One
    0.1350.2500.2000.280

    C. Lip Height - Your Dimensions


    D. Overall Plug Height - Choose One
    0.7200.7501.2000.8750.7500.612

    D. Overall Plug Height - Your Dimensions


    E. Bristle Height - Choose One
    0.2500.3120.3120.3120.3720.312

    E. Bristle Height - Your Dimensions


    Plug Material
    Grey PVC 1/8" Chamfer

    Bristle Fill
    Dia=0.012 Crimped NylonOther

    Bristle Fill - Other


    Tuft Holes
    Standard 12 or 24 count - depth = .250diam = .152Other

    Tuft Holes - Other


    Color
    BlackOther

    Color - Other


    F. Sample Sizes - If other than sample sizes, fill in custom dimensions on above chart.
    Size #1Size #2Size #3Size #4Size #5Size #6



    G. Bed Size



    H. Quantity



    I. Machine Make



    J. Machine Model



    K. Comments-Additional Description
